Fire Panels & Alarm Systems
Central Fire Alarm Control Panel Systems
nothing here
AIRPLUS designs central one-panel fire systems or complex multi-panel networks, integrated with intuitive software to help protect people & property every day.
Advanced Fire Panels, Alarm Systems, Devices & Peripherals
Advanced is a world-leading supplier of fire panels and alarm systems.
Advanced products are protecting people and property in 60 countries worldwide with an unmatched reputation for performance and quality.
Ease of Setup
Advanced fire panels are designed to be easily set up whether you are setting up a single panel or a network of 200 panels Advanced setup is intuitive and easy.
Continuous Improvement
Advanced dedicates 25% of their business to R&D each year to continuously improve product performance.
Quality Standards
Advanced manufactures all of their panels to demanding quality standards and hold global approvals. They enjoy full ISO 9001 compliance across manufacturing and design. All products are made in the UK.
Video
This video talks about Advanced products and corporation.
Axis AX High-Performance Panels
Axis AX product lines are high-performance, ULC-S527-19 compliant panel systems that come complete with digital audio.
The Results of Decades of Research
Axis AX is the result of decades of fire alarm and detection experience and research. They offer power and performance in a user-friendly format.
More Control Built-In
Axis AX packs in more configuration, control and interface options than any comparable Advanced product line with forward-thinking features mean that will maintain performance advantages into the future.
Key Features
- 1,2,or 4 loop formats
- Each 500mA digital signaling line circuit support up to 126 intelligent devices
- 1,000 Fire Zones when networked or 200 per panel
- Easy, high performance networking (up to 200 nodes)
- Circuit monitoring from any panel or annunciator
- True peer to peer networking
- Style 4 or 7 configuration
- Individual node configurable event reporting and control
- Comprehensive network diagnostics
- Compatible with all of the AX Series peripherals including annunciators, relay modules, I/O modules, power supplies, internal and portable printers, network modules, LED/switch modules, modem, RS-232, amplifiers, DACT and more
- Supports shielded wire, non-shielded wire and fibre optic lines
- Beam detectors, smoke detectors, sounder bases, open area sounders and beacons can be powered from SLC without need for a separate 24V supply
- Superb noise immunity and emissions
- Regulated loop voltage sustained during AC loss 2 or 4 voltage regulated NACs compatible with most listed NAC devices
- Two Amp current limit per NAC with alerts on panel or via email if limit exceeded
- Advanced’s Simple Select & Click programming & configuration
- Panel includes large 240×60 backlit LED with
- Advanced’s simple navigation and programming
- Unique, built-in voltage and current meters for easy diagnostics can be viewed on panel or remotely.
- Unique auto-test of battery cell integrity
- Direct USB and RS232 PC connections or Remote access and control of panels and network via Advanced ipGateway
- Output fully regulated clean 24 volts DC to all Notification Appliance Devices, making the panels ideal for retrofit applications without fear of failing regulatory compatibility listings
- 100% digital communications on the SLC to all intelligent smoke detectors and I/O modules
- Fast response and superior rejection of unwanted RF noise.
- Multi-sensor programming options allow for supervisory pre-alarm upon programmable smoke obscuration and fire alarm upon programmable temperature fixed or rate of rise.
- Fully integrated 40/80 Watt digital audio options
- Autolearn and Loop detection
- Quick start and protect – A working system after an Auto learn is performed ULC-S527-19‘9th Edition’ approved
AxisAX Audio
With the addition of an Advanced audio module (AV-AMP-80), any Axis AX control panel or Command Center becomes fully audio capable.
AxisAX Audio Product Brochures – Canadian Editions

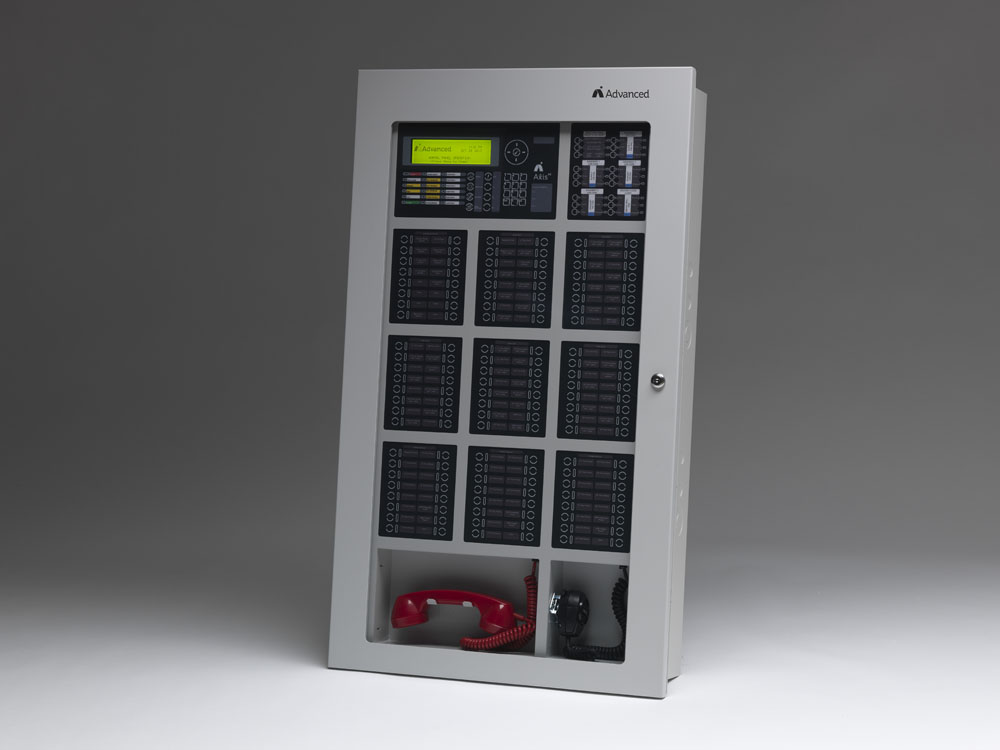

AxisAX Command Centres
Axis AX Command Centres are built on the backbone of their Axis intelligent fire panels to support a wide variety of configurations and applications.
Command Centres can be configured in the factory or, as all elements are individually approved, supplied in modular format for easy expansion and customization.
All Command Centres are fully compatible with Axis AX audio and telephone options and they can be configured for master control or peer-to-peer.
Master control mode allows for only one command centre to manually operate audio and main system control functions. Advanced’s Riser 6 Audio Module can be mounted inside the command centre or remotely for added security.
Network Nodes
- Digital Communicator – only one required for 200 node network
- AX-BMS Module – provides interface to Building Automation System
- AX-DGP – data gathering panel
- AES Long Range Radio
- Graphic Annunciator(s)
- P Gateway – only one required for 200 Node Network
- Ad-View Graphics
- AX-LOC – Local Operating Console
- Smoke Control Panel
- AX-VB Distributed Audio Panels
Key Features
- Synchronization of Audio and Strobes across entire 200 node network
- Failsafe operation if loss of master Command Center
- Supports multiple “true peer to peer” Command Center operations
- Intuitive and Easy for Fire Fighters to operate
- Audio confirmation LEDs indicate when speaker zones are active
- All Call, Page Evacuate, Page Alert & Page Inactive and Selective Paging features
- Manual activation of any message to any zone or group of zones
- No performance degradation as the number of network nodes expands
- Fan and smoke controls
- Mass Notification and non fire “Warning” Options
- Built-in telephone switchboard
- Dynamix wizard tool provides default telephone and audio options making set-up easy and fast
- Powerful control-by-event programming with intelligent system test facilities provides superior system diagnostic and test functions
- Built-in network, AC power, Aux power, battery and field wiring diagnostics
- Color coded slide in labels with large text to identify system functions
- Fire warden page
- PAS, 2-stage and alarm verification
- Zone and point disable/enable
- 1000 system zones
AxisAX Devices
Axis AX’s loop device family is a high-performance, easily installed and maintained family of devices. They offer a range of features and benefits suitable for almost any configuration.
AxisAX Sensors & Bases – Canadian Editions
To view the Axis AX range of Sensors & Bases approved to ULC-S527-19, click on the images below to open the brochure.
AxisAX Beacons, Sounders & Pull Stations – Canadian Editions
To view the Axis AX range of Beacons, Sounders & Pull Startions approved to ULC-S527-19, click on the images below to open the brochure.
AxisAX Intelligent Modules – Canadian Editions
To view the Axis AX range of Intelligent Modules approved to ULC-S527-19, click on the images below to open the brochure.
AxisAX Off-Loop NAC & Conventional Devices – Canadian Editions
To view the Axis AX range of Intelligent Modules approved to ULC-S527-19, click on the images below to open the brochure.
AxisAX Peripherals – Canadian Editions
The Axis AX Fire alarm Control Panels can be customized for almost any requirement. The system includes a huge range of peripheral options, click on the images below to open the brochure.
